LUGGING MEASUREMENTS
HOW TO ACCURATELY MEASURE YOUR ATTACHMENT LUGGING
Identification, Measurement & Acceptance Criteria
Summary: To get the proper fitting for a coupler, a machine, or any new attachment, you have to accurately measure your current attachments lugging. Several dimensions are required such as, pin centres, boss spread and additional measurements if your attachment has a thumb. This article is a guide on how to ensure that the lugging dimensions are measured correctly.
Applies to: Anyone who needs assistance with measuring a standard pin lugging on an attachment with or without a thumb, such as a coupler, bucket, rake and more.
Final Acceptance Criteria

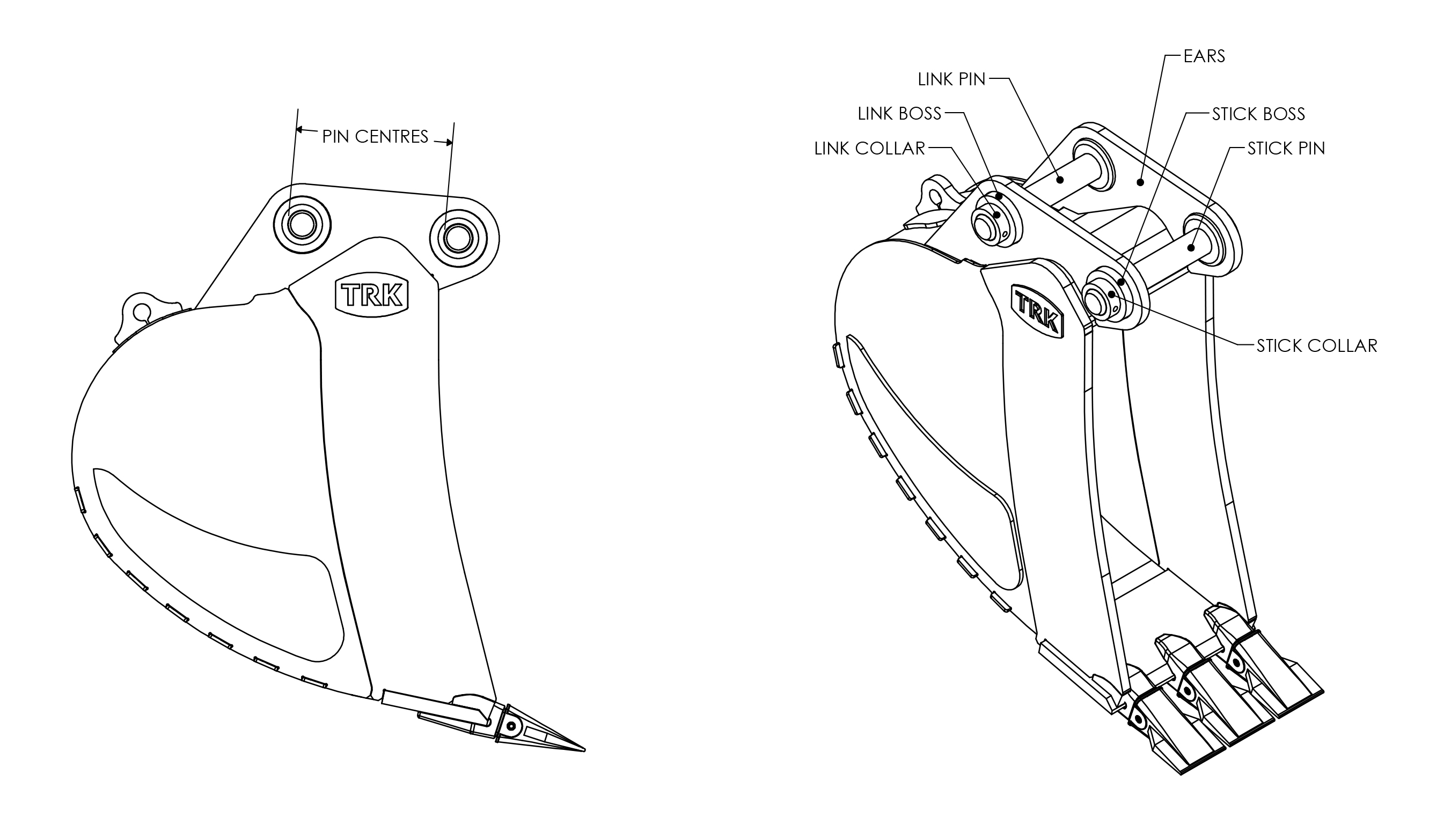

- Measure center to center distance between the stick and link pins accurately with a tape measure or digital caliber
- Measure the distance between the inside faces of the stick bosses
- Measure the distance between the inside faces of the link bosses
- For MACHINES equipped with a thumb, measurements are required from the attachment to which the thumb pins on to: Distance from the outermost face on the stick collar (or boss) on the left side to the outermost face on the stick collar (or boss) on the left side
- All recorded values are successfully cross-referenced and matched against the official TRK lugging measurements.
Technical bulletin
This procedure establishes what parts of the lugging need to be measured and where they are located on the attachment.
